• VERTI-2-FLAIL®

Vertical flail technology system "VERTI-2-FLAIL®"

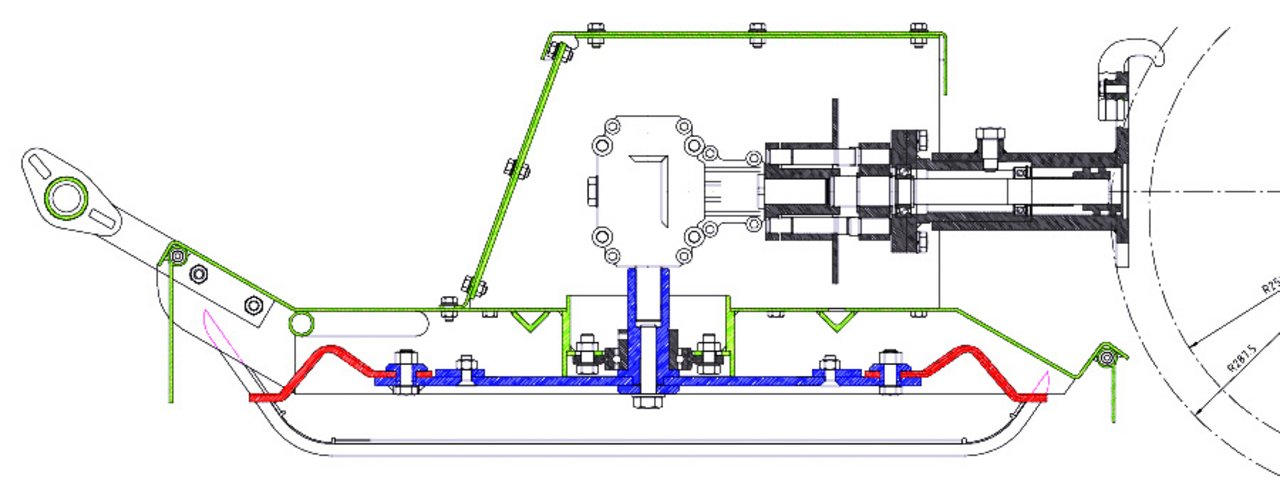

VERTI-2-FLAIL® cutting unit

Specific features: hardened blade carrier patented flail blades 332.2180

Special features

Sturdy constructionFor professional use under the toughest conditions, hardened blade carriers, armoured blade bearings
Long service lifePatented ESM "VERTI-2-FLAIL®" cutting system, special pendulum-mounted blades
Low maintenanceQuick and easy blade replacement, only 2 blades per blade carrier
Slim designIdeally suited for special applications, e.g. in roadside greenery or on public green spaces
Convenient handlingExtremely easy handling and optimum manoeuvrability with the additional "sliding disc" option
Environmentally friendly25% lower energy consumption compared to conventional flail technologies
Work safelyIntegrated, automatic blade brake in accordance with DIN 12733 for single-axle machines

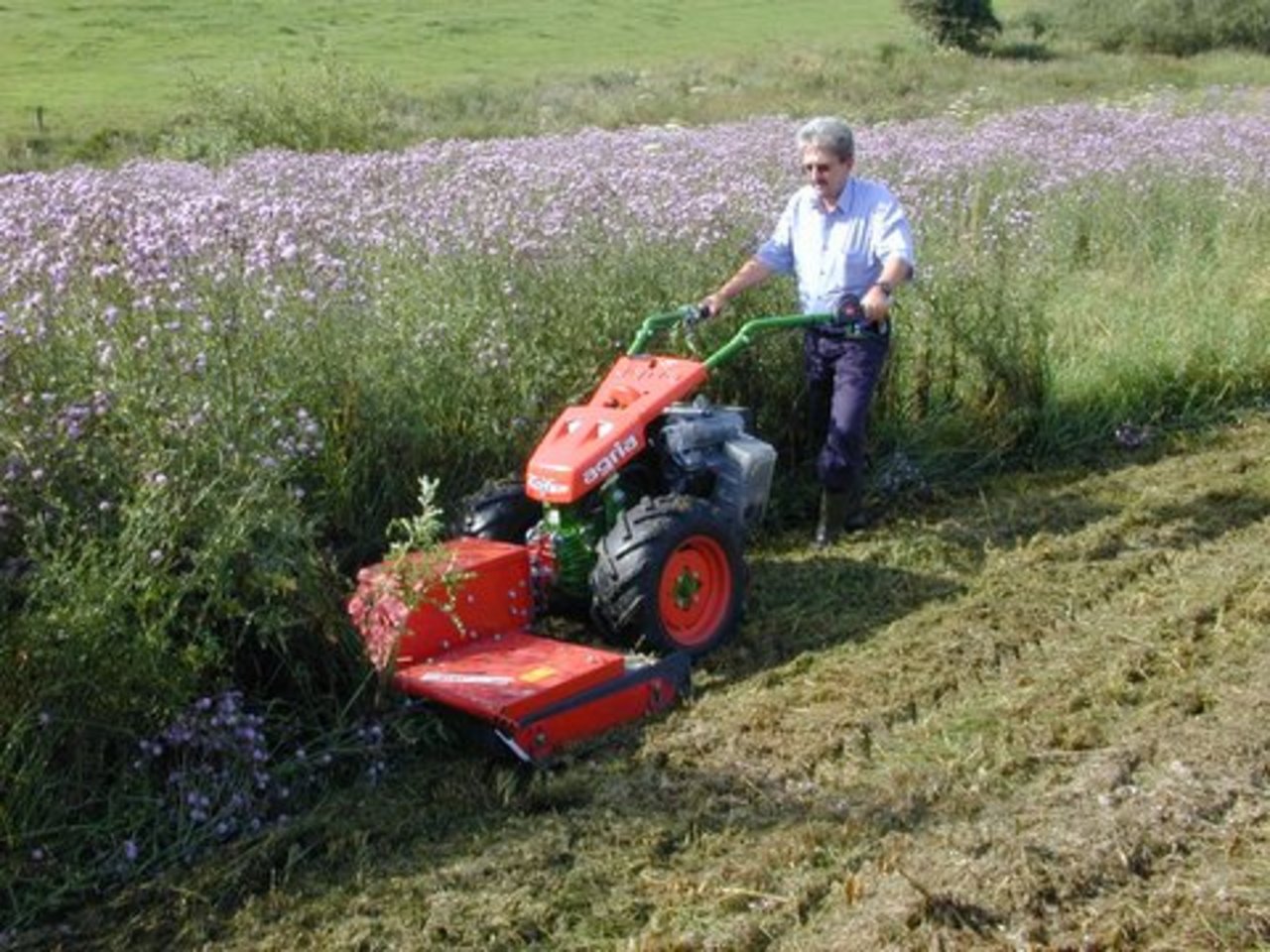

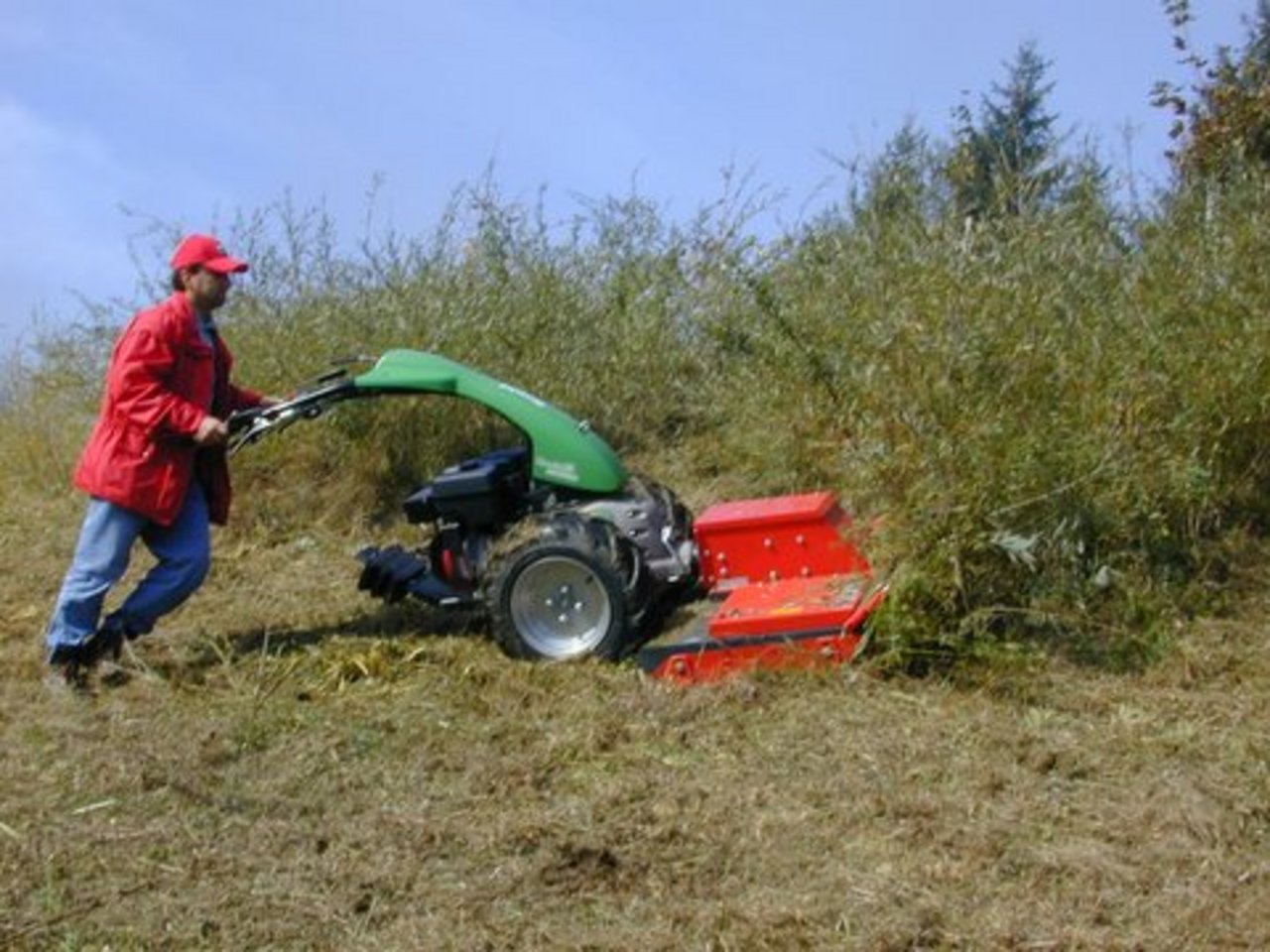

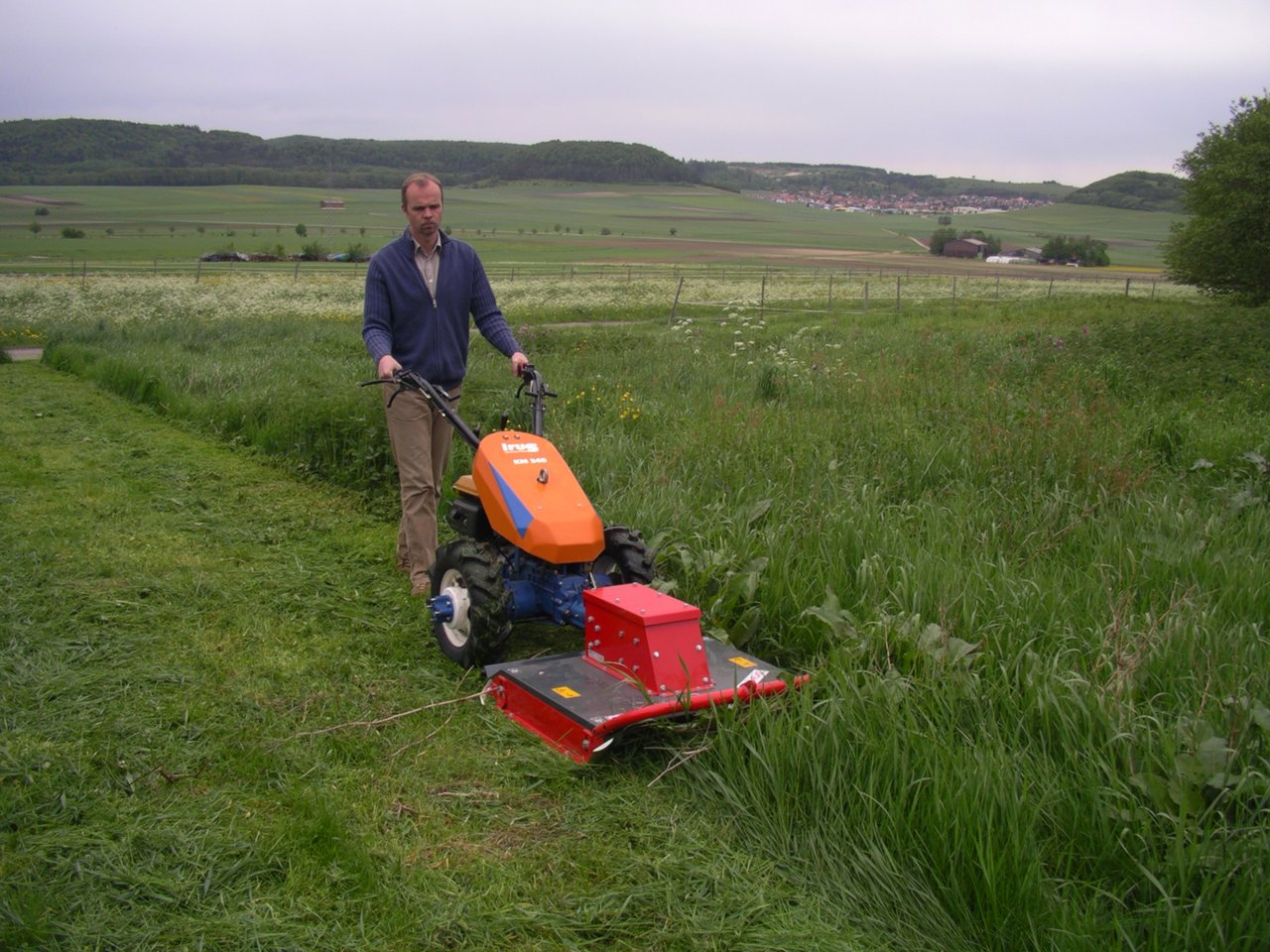

Mowing and mulching anywhereThe ideal cutter for mulching and fine mowing of extensively utilised areas. Whether green space maintenance in gardening and landscaping, on roadsides, in orchards and vineyards or in agriculture and forestry - wherever performance and robustness are required, "VERTI-2-FLAIL®" shows its strengths to the full. "VERTI-2-FLAIL®" guarantees an extremely clean cut even with very tall grass and wild growth as well as pruning vines and trees. Even trunk thicknesses of up to 50 mm in diameter are no problem for the pendulum-mounted blades

Videos

Vertical glider

https://www.youtube.com/watch?v=sdvlGldbvKQ

Verti-2-Flail - Überall Mähen und Mulchen

https://www.youtube.com/watch?v=vg330KS31zM

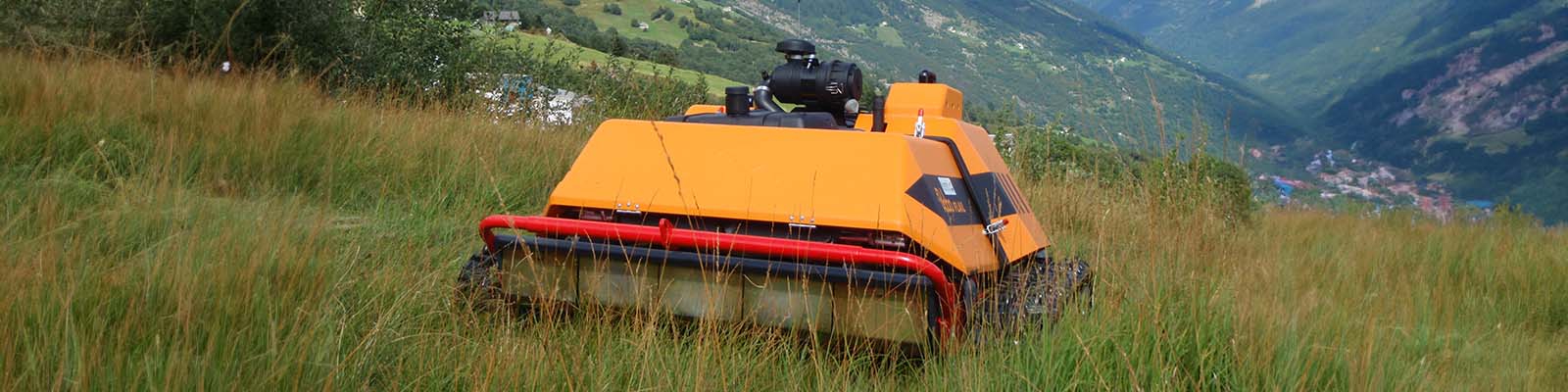

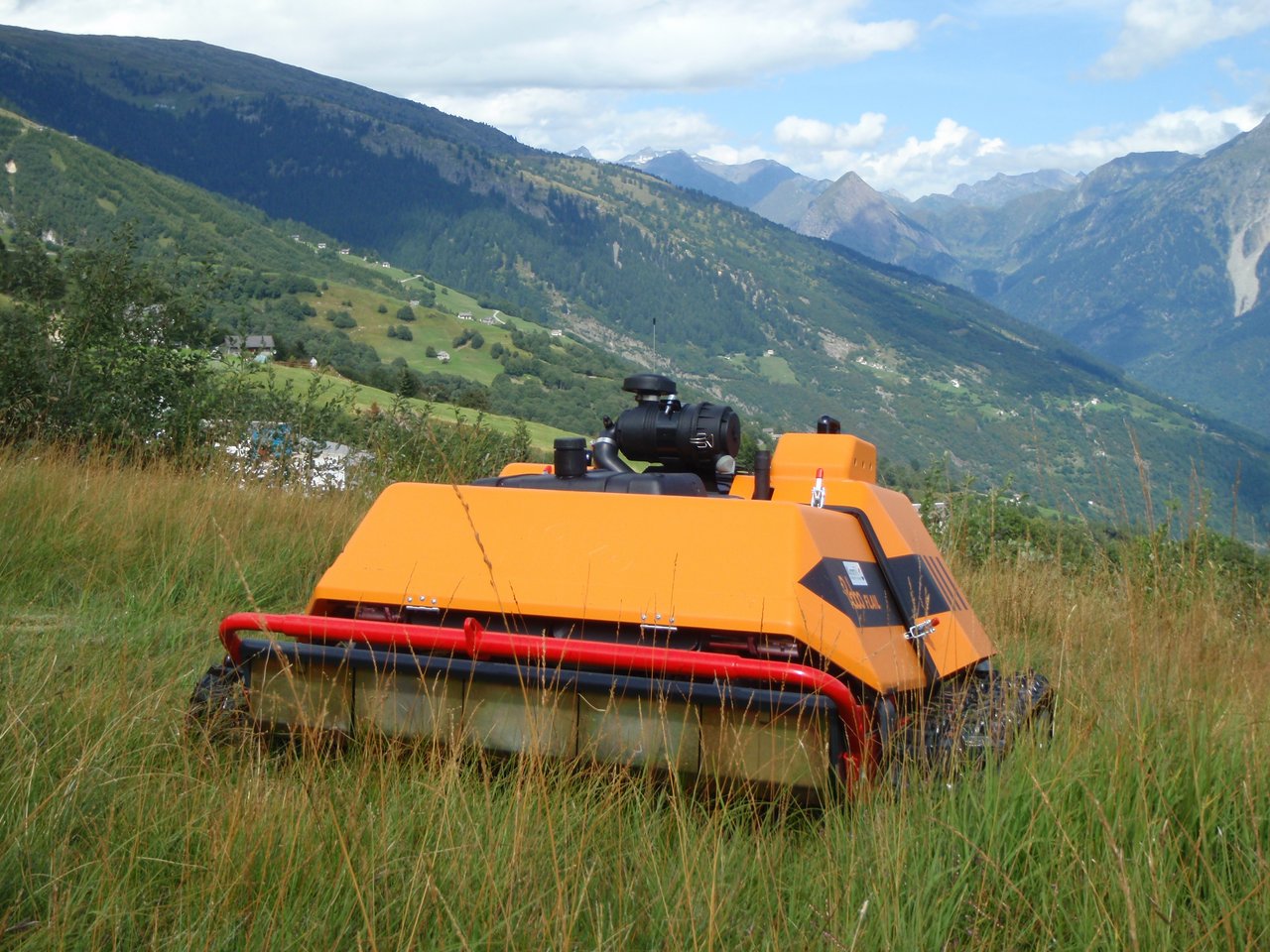

KommTek RoboFlail one

https://www.youtube.com/watch?v=tKZCjCHIiB8

Niko RoboFlail one

Special accessories

PTO interfaces
Belt drive concepts
Hydraulic motors
Standard PTO shafts

Drive types and mounting options

The ESM "VERTI-2-FLAIL®" mounted mowers are adapted by means of:

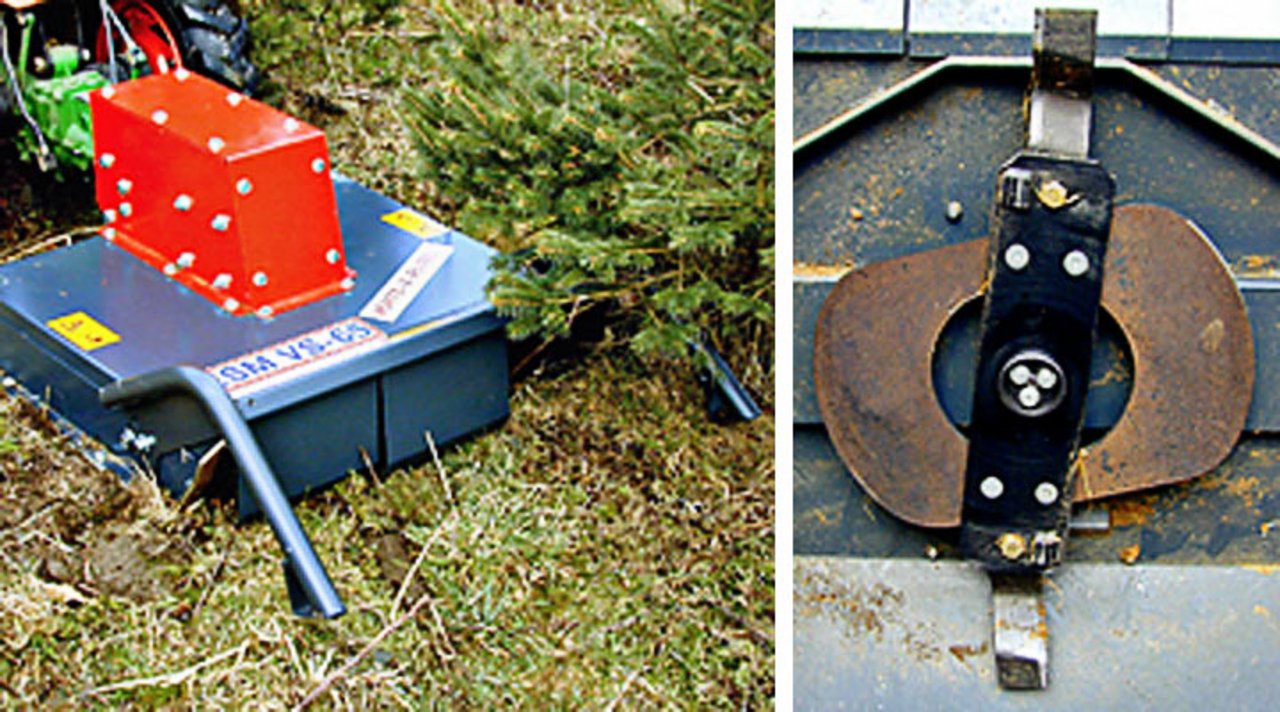

Branch lifter set and flywheel for the care of Christmas trees.

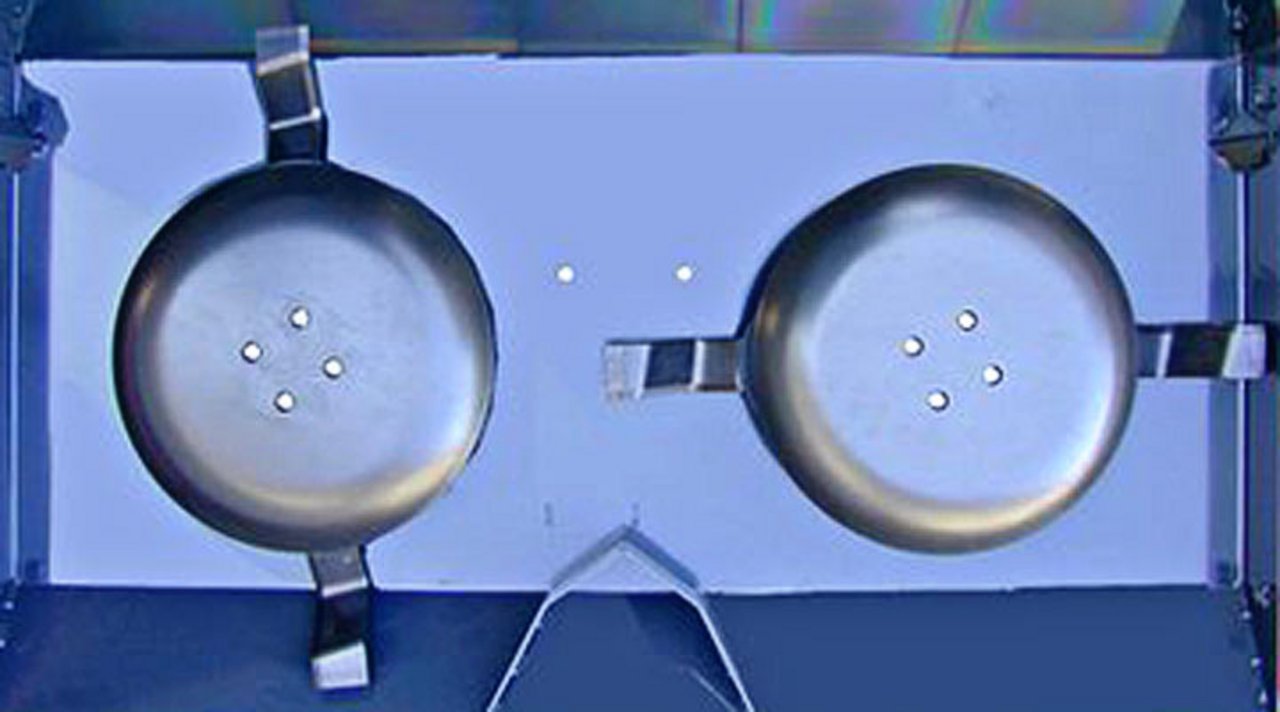

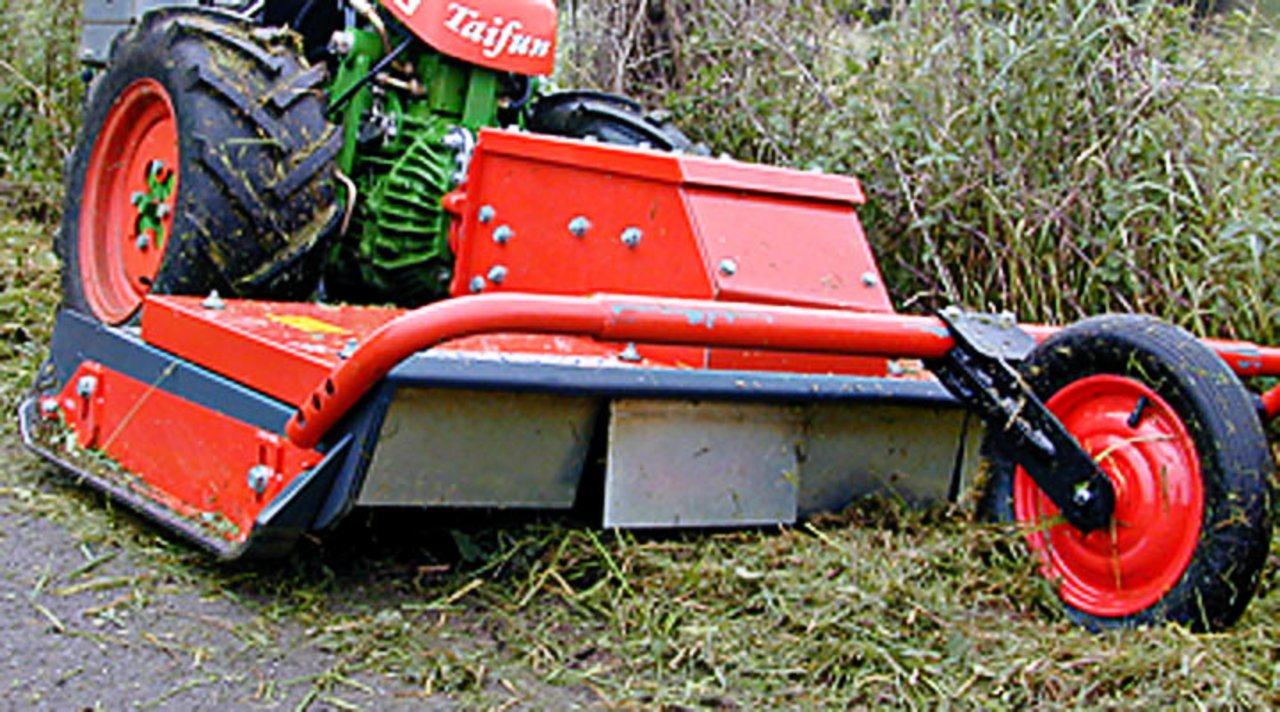

Floor copying sliding discs (ball bearing mounted)

Technical data

Cutting width in cm65
Weight in kg60
Min. required drive power5.0 KW
Number of impact knives2
L x W x H in cm82 x 73 x 33

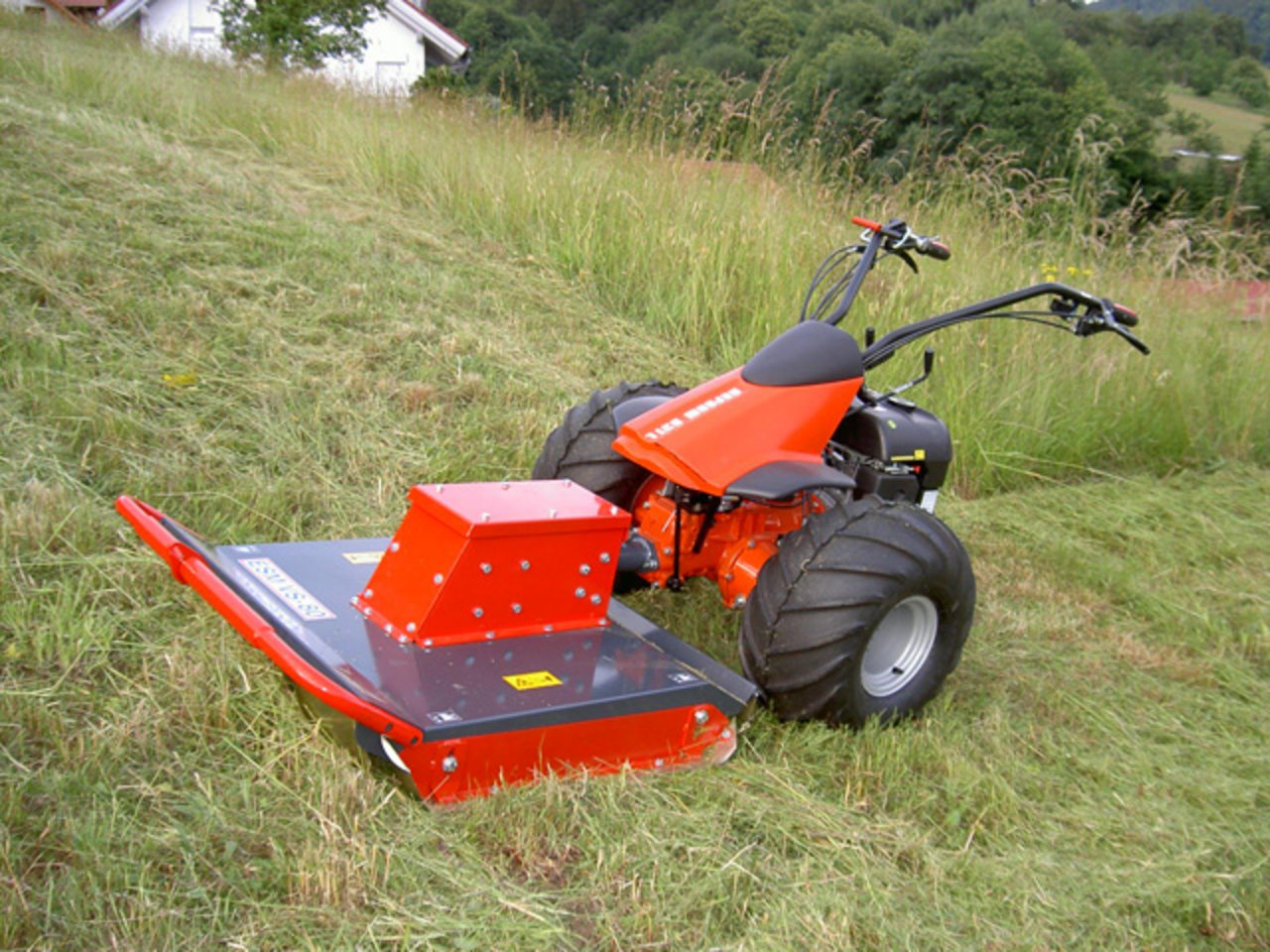

Cutting width in cm80
Weight in kg88
Min. required drive power5.5 KW
Number of beater blades2
L x W x H in cm105 x 88 x 38

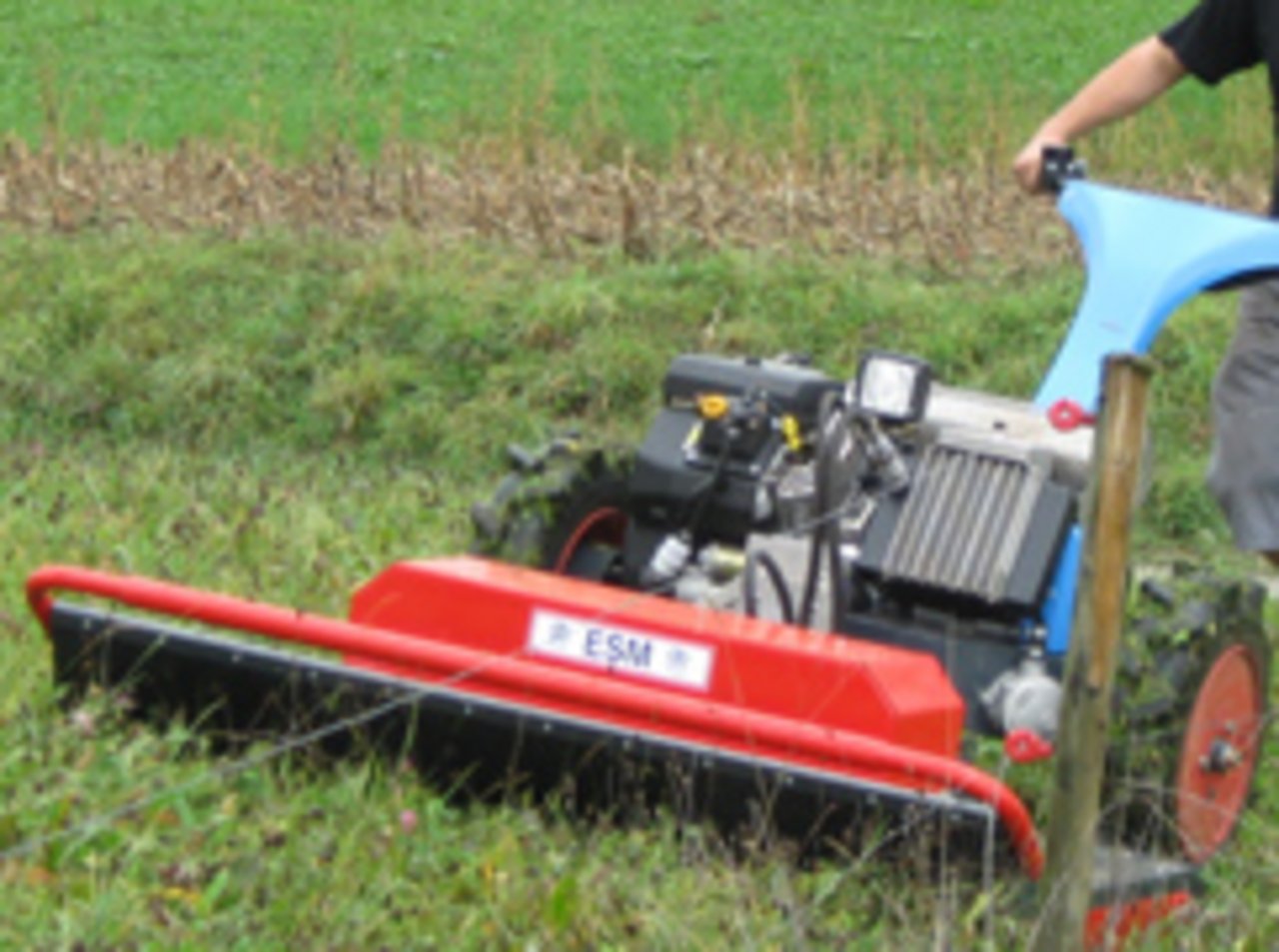

Cutting width in cm122
Weight in kg130
Min. required drive power11.0 KW
Number of beater blades4
L x W x H in cm95 x 133 x 45

Further product information

Operating instructions

Document descriptionDocument type
Vertical flail cutter VS-65 and VS-80 9020960ba.pdf
Vertical flail attachment VS-1229020976ba.pdf
