Uni-SC Klappführung

Universal cutter bar SC

Universal "SC" cutter bar 102. ****

Specific features:

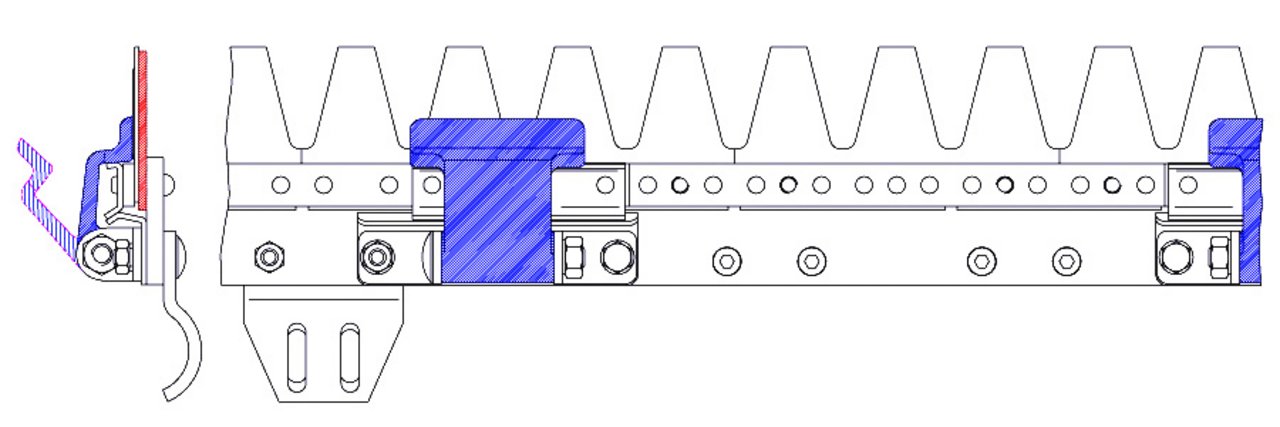

Beam blades riveted to the back of the beam
Guide can be clipped on 332.2180

Komfortables Handling

  • Service und Wartung mittels weniger Handgriffen erledigt.

Messerklingen

  • Sauberer Schnitt und hohe Standzeiten
  • Länger Schneiden ohne nachzuschleifen!
  • Bewährtes Klingendesign – bestes Schneidergebnis, optimaler Wiederaufwuchs

Schlanke Bauweise

  • Optimal zur sauberen Futtergewinnung in der Landwirtschaft

Stabile Konstruktion

  • Für den professionellen Einsatz zur der Futtergewinnung
  • Optimales Schneidergebnis

Komfortables Handling

  • Service und Wartung mittels weniger Handgriffen erledigt.

Stabile Konstruktion

  • Für den professionellen Einsatz zur der Futtergewinnung
  • Optimales Schneidergebnis

Wartungsfreundlich

  • Schneller und einfacher seitlicher Messerwechsel, aufklappbare Messerhalter.
  • Automatische und präzise Einstellung des Führungsspiels beim Herunterklappen der Messerführung.

Schlanke Bauweise

  • Optimal zur sauberen Futtergewinnung in der Landwirtschaft

Perfektes Mähen

  • Klassisches Schneidgerät für den professionellen Einsatz in der Landwirtschaft
  • Garantiert sauberer Schnitt zur Gewinnung von qualitativ hochwertigem Futter
  • Verschiedene Fingerteilungen für nahezu jeden Einsatzzweck.
  • Ausführung mit Mulchfingern erlaubt Durchfahren von bereits geschnittenem Mähgut - ohne zu Verstopfen!

Umweltfreundlich

  • Extrem geringer Energiebedarf
  • Schont Klein- und Kleinstlebewesen
  • Optimaler Schutz von Flora, Fauna und Habitat!

Messerklingen

  • Sauberer Schnitt und hohe Standzeiten
  • Länger Schneiden ohne nachzuschleifen!
  • Bewährtes Klingendesign – bestes Schneidergebnis, optimaler Wiederaufwuchs

Komfortables Handling

  • Service und Wartung mittels weniger Handgriffen erledigt.

Stabile Konstruktion

  • Für den professionellen Einsatz zur der Futtergewinnung
  • Optimales Schneidergebnis

Wartungsfreundlich

  • Schneller und einfacher seitlicher Messerwechsel, aufklappbare Messerhalter.
  • Automatische und präzise Einstellung des Führungsspiels beim Herunterklappen der Messerführung.

Schlanke Bauweise

  • Optimal zur sauberen Futtergewinnung in der Landwirtschaft

Perfektes Mähen

  • Klassisches Schneidgerät für den professionellen Einsatz in der Landwirtschaft
  • Garantiert sauberer Schnitt zur Gewinnung von qualitativ hochwertigem Futter
  • Verschiedene Fingerteilungen für nahezu jeden Einsatzzweck.
  • Ausführung mit Mulchfingern erlaubt Durchfahren von bereits geschnittenem Mähgut - ohne zu Verstopfen!

Umweltfreundlich

  • Extrem geringer Energiebedarf
  • Schont Klein- und Kleinstlebewesen
  • Optimaler Schutz von Flora, Fauna und Habitat!

Messerklingen

  • Sauberer Schnitt und hohe Standzeiten
  • Länger Schneiden ohne nachzuschleifen!
  • Bewährtes Klingendesign – bestes Schneidergebnis, optimaler Wiederaufwuchs

Perfektes Mähen

  • Klassisches Schneidgerät für den professionellen Einsatz in der Landwirtschaft
  • Garantiert sauberer Schnitt zur Gewinnung von qualitativ hochwertigem Futter
  • Verschiedene Fingerteilungen für nahezu jeden Einsatzzweck.
  • Ausführung mit Mulchfingern erlaubt Durchfahren von bereits geschnittenem Mähgut - ohne zu Verstopfen!

Umweltfreundlich

  • Extrem geringer Energiebedarf
  • Schont Klein- und Kleinstlebewesen
  • Optimaler Schutz von Flora, Fauna und Habitat!

Wartungsfreundlich

  • Schneller und einfacher seitlicher Messerwechsel, aufklappbare Messerhalter.
  • Automatische und präzise Einstellung des Führungsspiels beim Herunterklappen der Messerführung.

Universal cutter bar

Videos

Universalmähbalken SC _2

Universalmähbalken SC_1

Drive type and mounting option

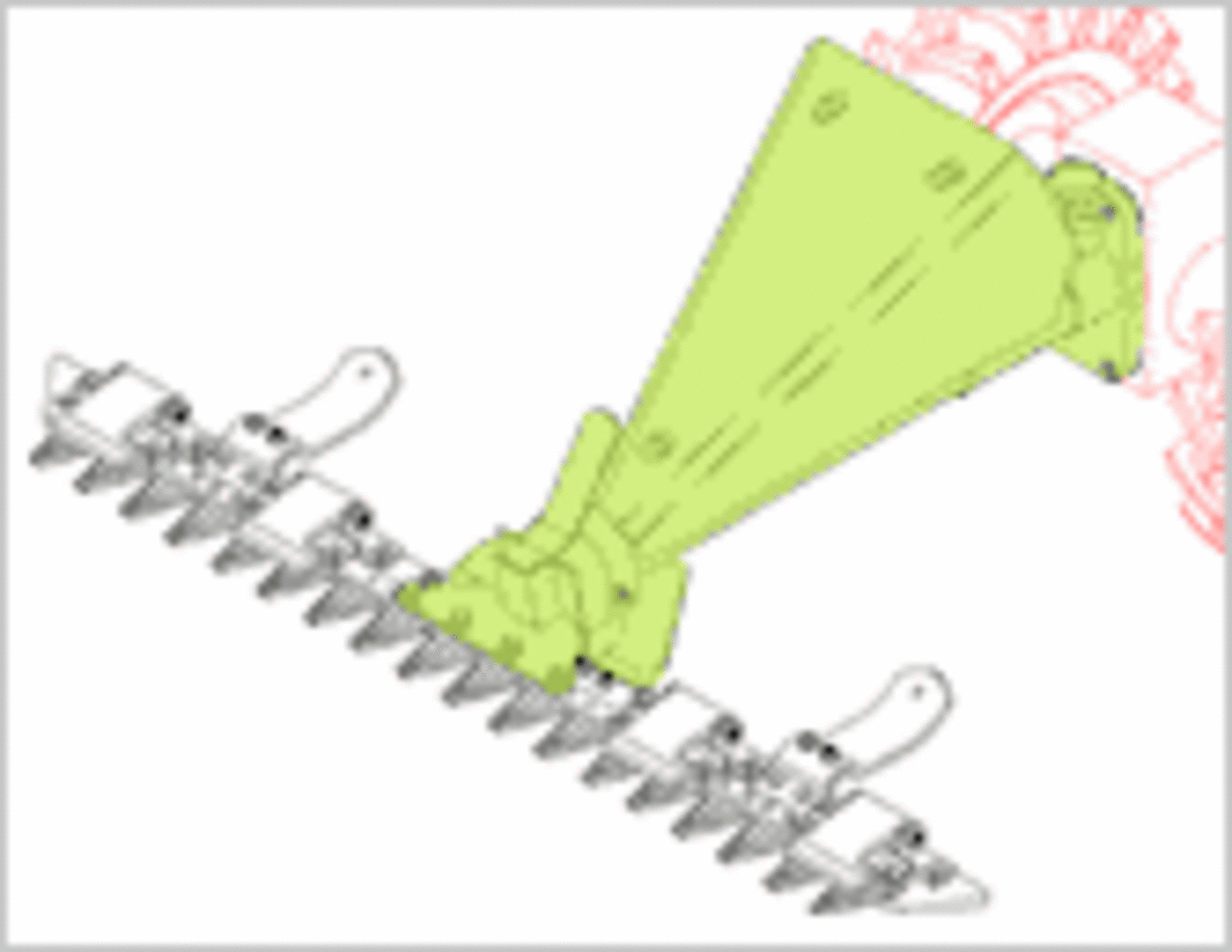

Eccentric mower drive
(suitable for Universal "SC" cutter bar)

Professional tip

Further product information

Practical tips

Description

Document type

Practical tips for Universal/Hobby cutter barsdownload
Cutter bar Universal C / Cutter bar Hobby CDownload the
Universal SC cutter barDownload the
Eccentric mower drive suitable for Universal SCDownload the

Assembly and user instructions

Download description

Document type

Rivet assortments SCdownload

Faults and their remedies

CauseRemedy
Blade is bluntGrind or replace blade
Blade is not straightRemove and straighten blade
Blades are not alignedStraighten blades
Back of beam bentStraighten back of beam
Play in blade guide too largeAdjust blade guides according to maintenance instructions
Cutting height set too highCorrect the height of the outsoles, remove outsoles if necessary
Bar blades not tilted downwards (target value -4° to -5°)Change tyre size



CauseRemedy
Speed too highDo not exceed the maximum speed of 1150 rpm!
Incorrect drive settingAdjust according to user manual

  • Drive speed too high
  • Play in the cutter head is too large
  • Play in the cutter drive is too large
  • Play in the blade guides too large
  • Mower blade frequently hits the side of fixed boundaries
  • Frequent driving at maximum speed without mowing
  • Cutter head screws are not properly tightened
  • Mowing with very blunt blades (the mower blade is stressed by high power consumption)
  • Frequent contact of the blades with hard foreign objects

Design formClearance min. - max.Error correction
Crank loop with track roller0.1 - 0.55 mmReplace blade carrier and roller if necessary
Crank loop with replaceable wear strips and rollers0.05 - 0.3 mmChange wear strips and rollers if necessary
Link (planetary drive)0.05 - 0.4 mmReplace blade carrier
Sliding block with wear strips (planetary drive)0.05 - 0.3 mmChanging wear strips
with set screws (swing arm drive)0.1 - 0.3 mmSet the adjusting screws to a clearance of 0.1 mm
with ball joint (swing arm drive)0 -0.3 mmReplace ball joint if necessary also replace pivot bolt
with rubber block (swing arm drive)0 mm no play permitted.If destroyed or hardened, replace the rubber block



Technical data

Long strokeShort stroke
Working width0.66 m to 1.98 m0.66 m to 1.98 m
Blade pitch50.9 mm50.9 mm
Double stroke rate per 1 m mowing path1420
Double stroke rate per min750 - 8501000 - 1100
Stroke85 mm55 mm
Power requirement per
1 m cutting width
approx. 2.8 - 3.2 kW2.5 to 3.0 kW
