Rethinking extra power
ESM double blade cutting system biduxX-FLOW®
The newly developed ESM biduxX-FLOW® double-blade cutting unit generation (patent-protected) defines the peak performance of what is currently technically feasible in terms of service life, ease of servicing and longevity.
The "ESM double-blade cutting system biduxX-FLOW®" is the perfect power tool for almost any application. Especially in the context of large-scale forage harvesting and demanding landscape maintenance: the "ESM double-blade cutting system biduxX-FLOW®" delivers unique work results.
The demand for optimum "crop flow optimisation" is implemented in a new way here. In addition to a unique beam back design, for example, all fastening elements are designed to optimise crop flow. Various attachment elements have been optimised or, where possible, eliminated.
Another milestone when it comes to producing clean forage, a prerequisite for healthy livestock and therefore directly linked to the productivity and success of a farm.
Maximum protection of fauna, flora and habitats is guaranteed!
- 100% geometrically regrindable
- 70% more regrinding surface = 70% longer service life
- 100% sharp as new - after every maintenance
- Longer cutting performance = more surface performance
- biduxX-FLOW® beam design= optimum crop flow

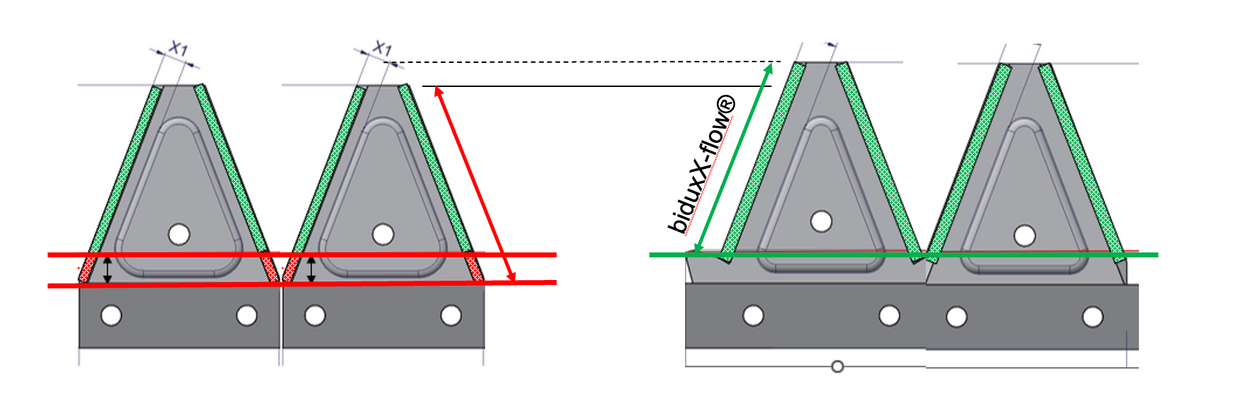

In the critical zone of the general state of the art (red), the knife edge cannot be resharpened in its entirety for geometric reasons.
The innovative biduxX-FLOW® blade design allows the entire cutting edge to be resharpened.
After each sharpening, the knife blade is restored to its original cutting edge condition!
- 70% more resharpening surface means an approx. 70% longer service life for the mower blade.

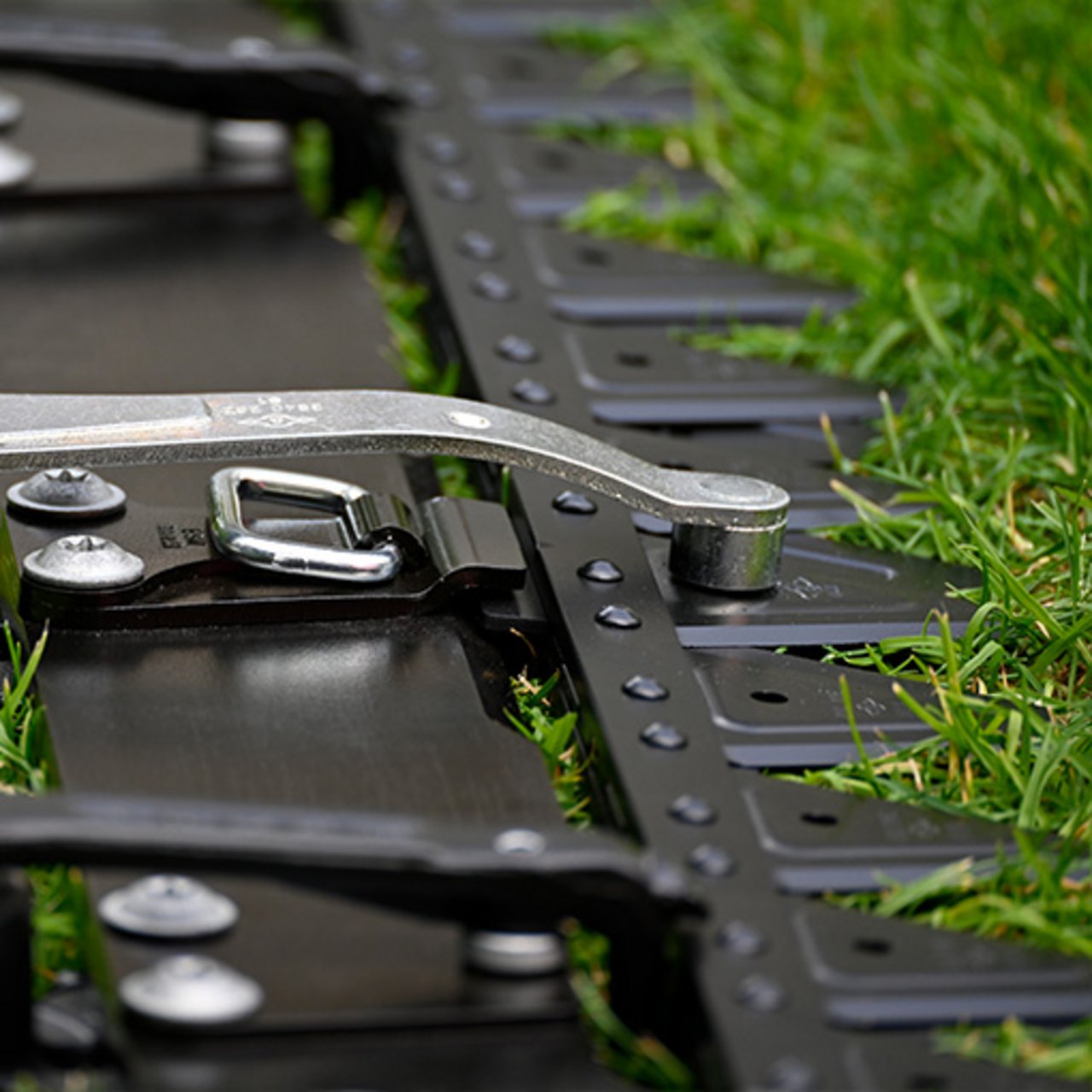

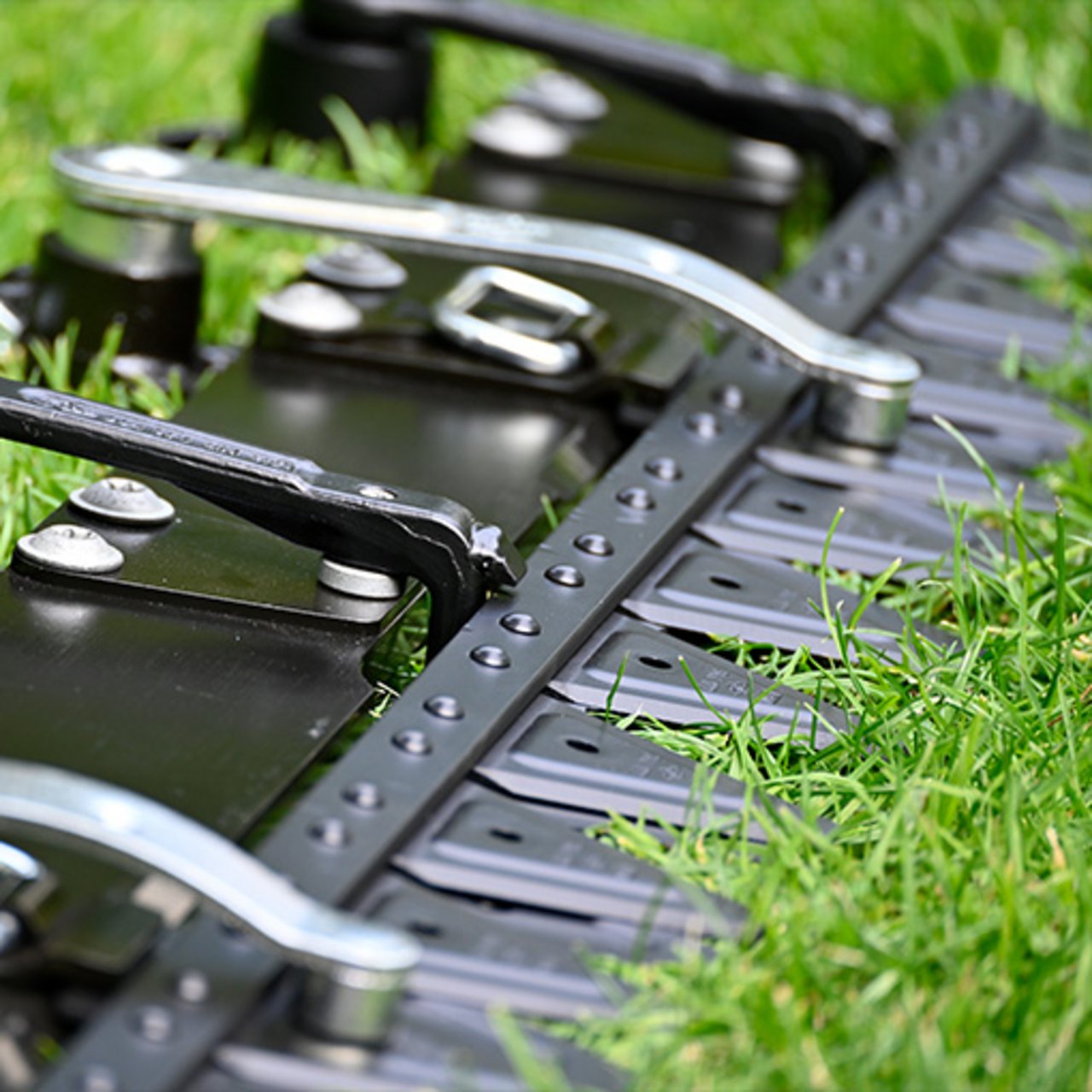

- Patented biduxX-FLOW® bar design= minimised gap between blade back and bar back = optimum crop flow
- Flow-optimised components = optimum crop flow

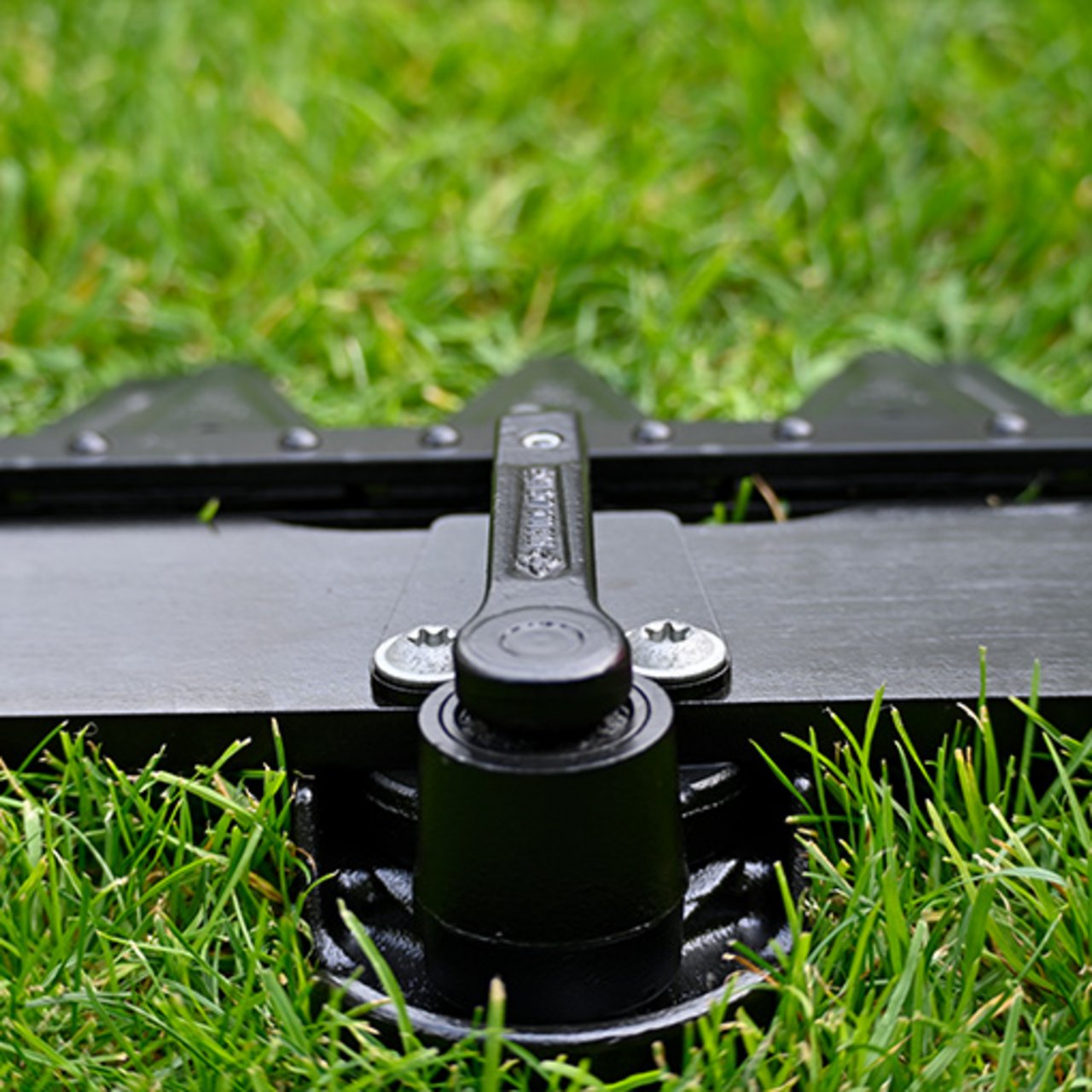

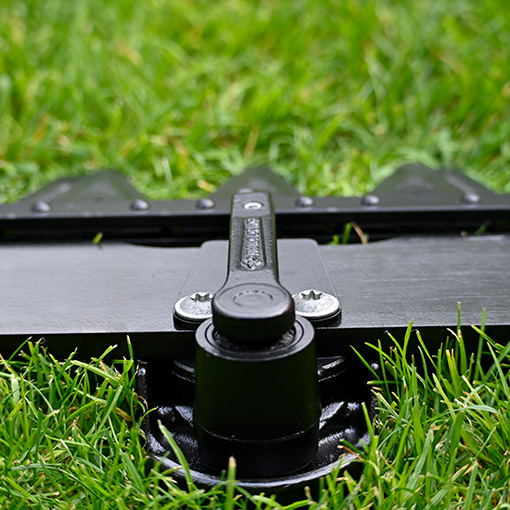

- HD lower knife guide arm (pat. pend.) = optimised knife balance
- Integrated blade guard Lower blade guide arm = optimised guidance
| Working widths cutterbar | 151 | 193 | 235 | 277 | 319 | 361 [cm] |
| Blade pitch | 70 to 84 [mm] |
| Mowing speed | 3 to 12 [km/h] |
| Double stroke rate per minute | 800 to 1,100 |
| Lifting upper blade | 42 [mm] |
| Lower stroke blade | 42 [mm] |
| Power requirement per m AB | Approx. 2.2 to 2.5 [kW] |

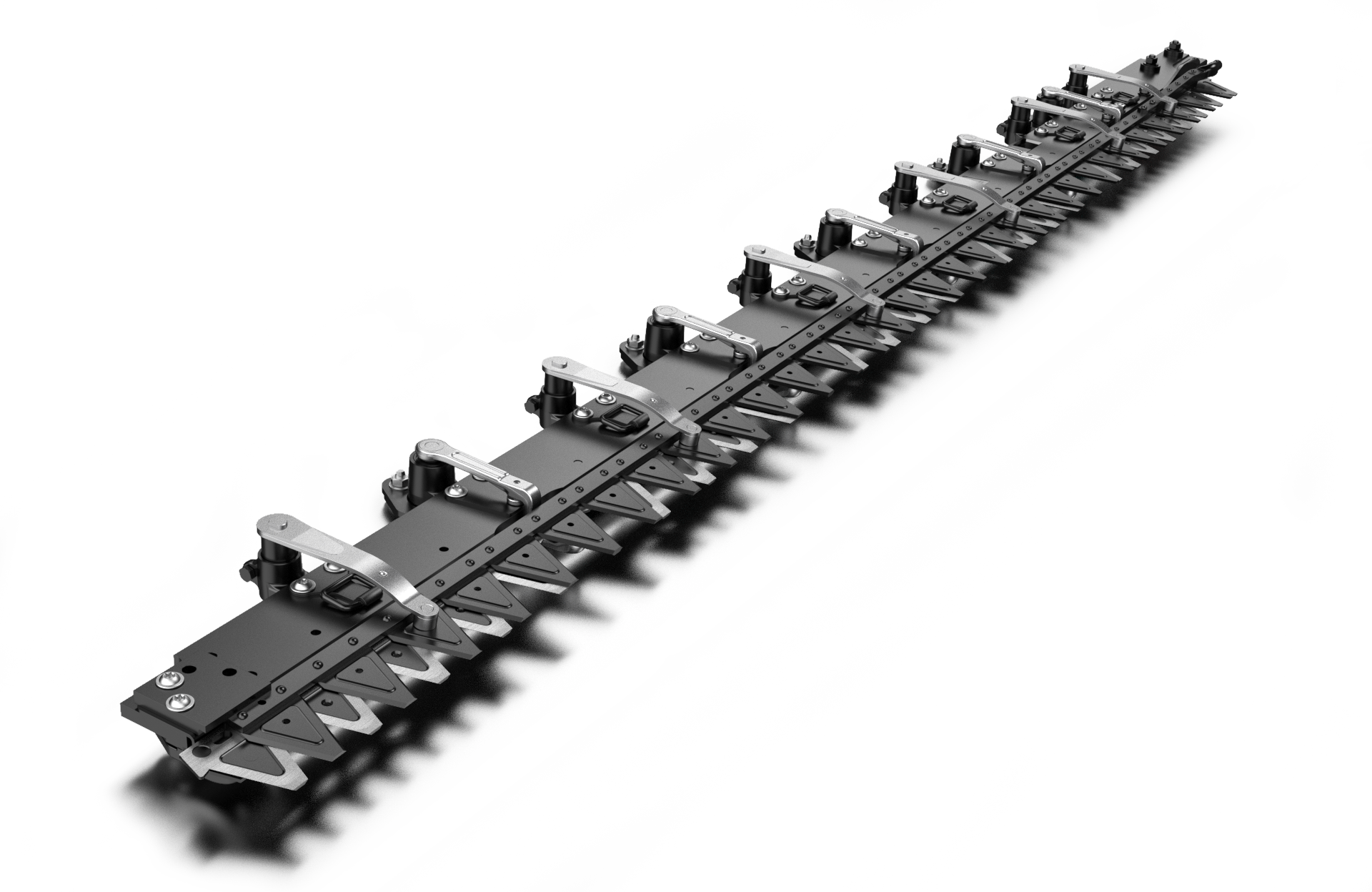

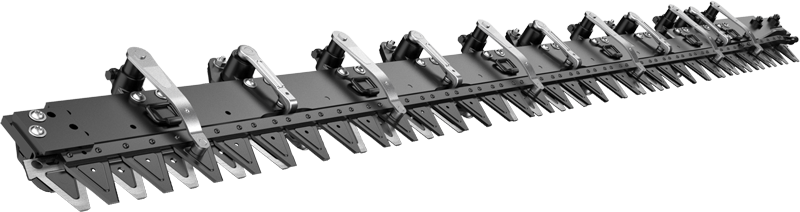

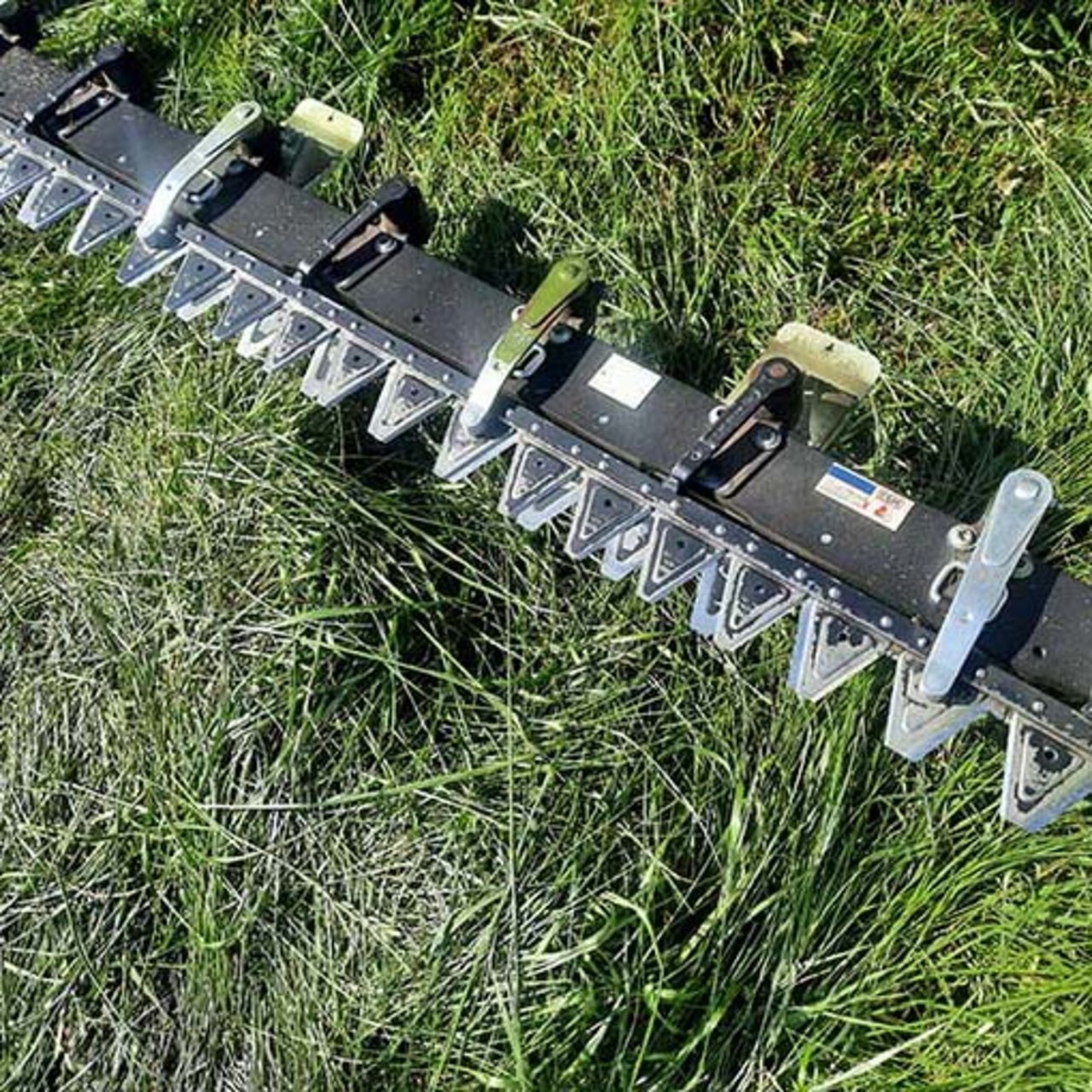

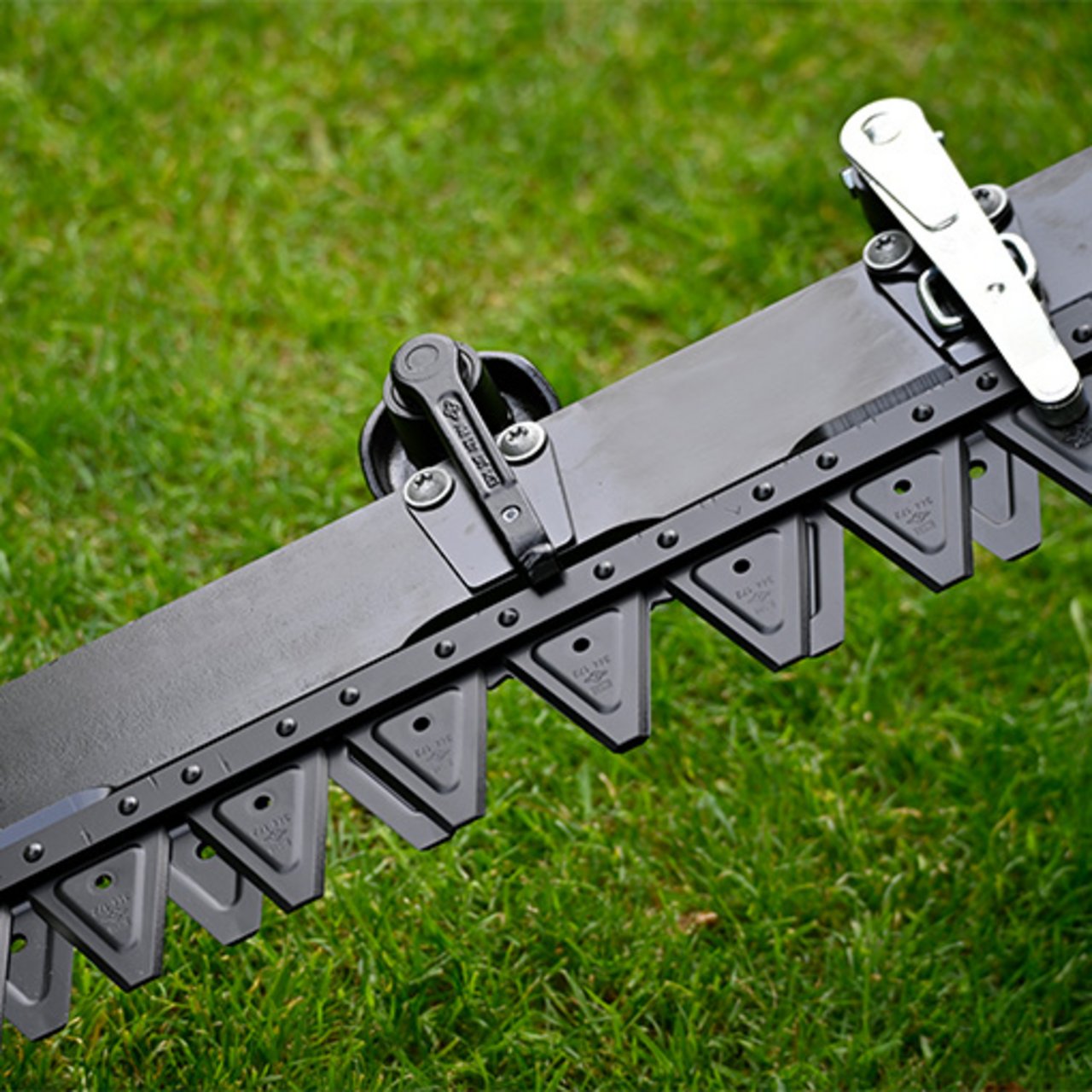

biduxX-FLOW® double-blade cutting unit
Videos
Sustainable grassland management with cutter bar mower
Mowing in moorland with Lintrac 100 and 130 I Wet meadow management at BB Umwelttechnik
1st cut in the Allgäu I Double-blade mower and comb rake I visit BB Umwelttechnik
Professional tip
Further product information
Practical tipsDescription | Document type | |
|---|---|---|
| Practical tips for double knife cutting units | Download | |
| Professional grinding of mower blades | Download | |
| Beam reinforcement | Download | |
| CARBODUX® knife blade technology | Download our | |
| Rivet assortments | Download the | |
Assembly and user instructionsDownload description | Document type | |
|---|---|---|
| DM swing arm mower drive | download | |
downloadDownload description | Document type | |
|---|---|---|
| ESM Service Station with guide rail | download | |
| Cause | Remedy |
| Blade is blunt | Grind or replace blade |
| Blade is not straight | Remove and straighten blade |
| Blades are not aligned | Straighten blades |
| Back of beam bent | Straighten back of beam |
| Play in blade guide too large | Adjust blade guides according to maintenance instructions |
| Speed and forward speed | At 1150 rpm approx. 10 km/h At 800 rpm max. 6 km/h (recommended guide values) |
| Cause | Remedy |
| Speed too high | Do not exceed the maximum speed of 1150 rpm! |
| Incorrect drive setting | Adjust according to user manual |

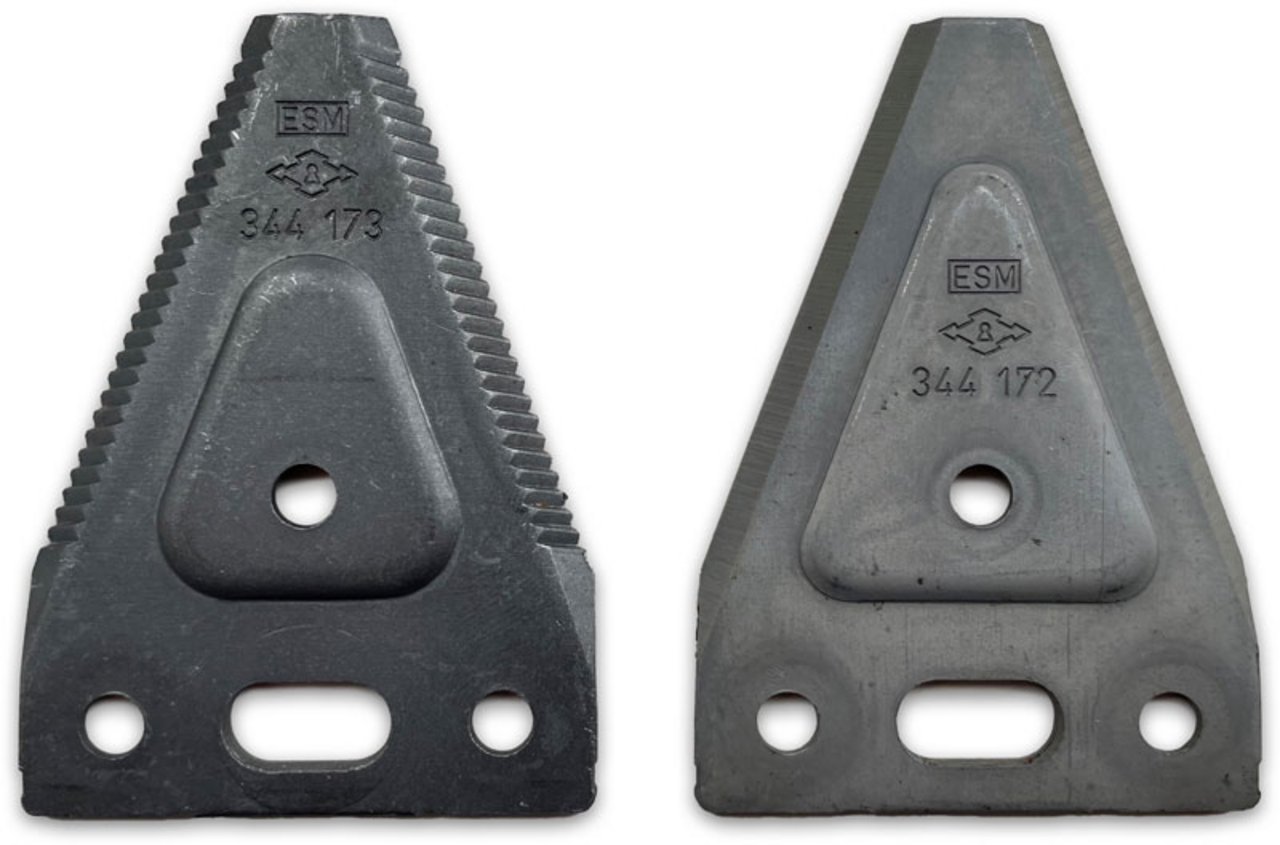

Carbodux® knife blade
Only ESM has a serrated knife blade specially designed for use in coarse-grained material. This blade is used in the biduxX-flow ® in the upper knife paired with a smooth lower knife for an exact cut, designed for maximum performance. Long service life and no regrinding necessary = reduction of grinding effort by 50 %.
Only original from ESM!
