Professional tip
Further product information
Assembly and user instructionsDownload description | Document type | |
|---|---|---|
| DM swing arm mower drive | download | |
| DM bidux double-blade cutterbar / Busatis "76.2" system | download | |
| Portal cutterbar bidux 126, 196 and 238 cm | Download the | |
downloadDownload description | Document type | |
|---|---|---|
| ESM Service Station with guide rail | download | |
| Cause | Remedy |
| Blade is blunt | Grind or replace blade |
| Blade is not straight | Remove and straighten blade |
| Blades are not aligned | Straighten blades |
| Back of beam bent | Straighten back of beam |
| Play in blade guide too large | Adjust blade guides according to maintenance instructions |
| Speed and forward speed | At 1150 rpm approx. 10 km/h At 800 rpm max. 6 km/h (recommended guide values) |
| Cause | Remedy |
| Speed too high | Do not exceed the maximum speed of 1150 rpm! |
| Incorrect drive setting | Adjust according to user manual |
Variants, special shapes, specials

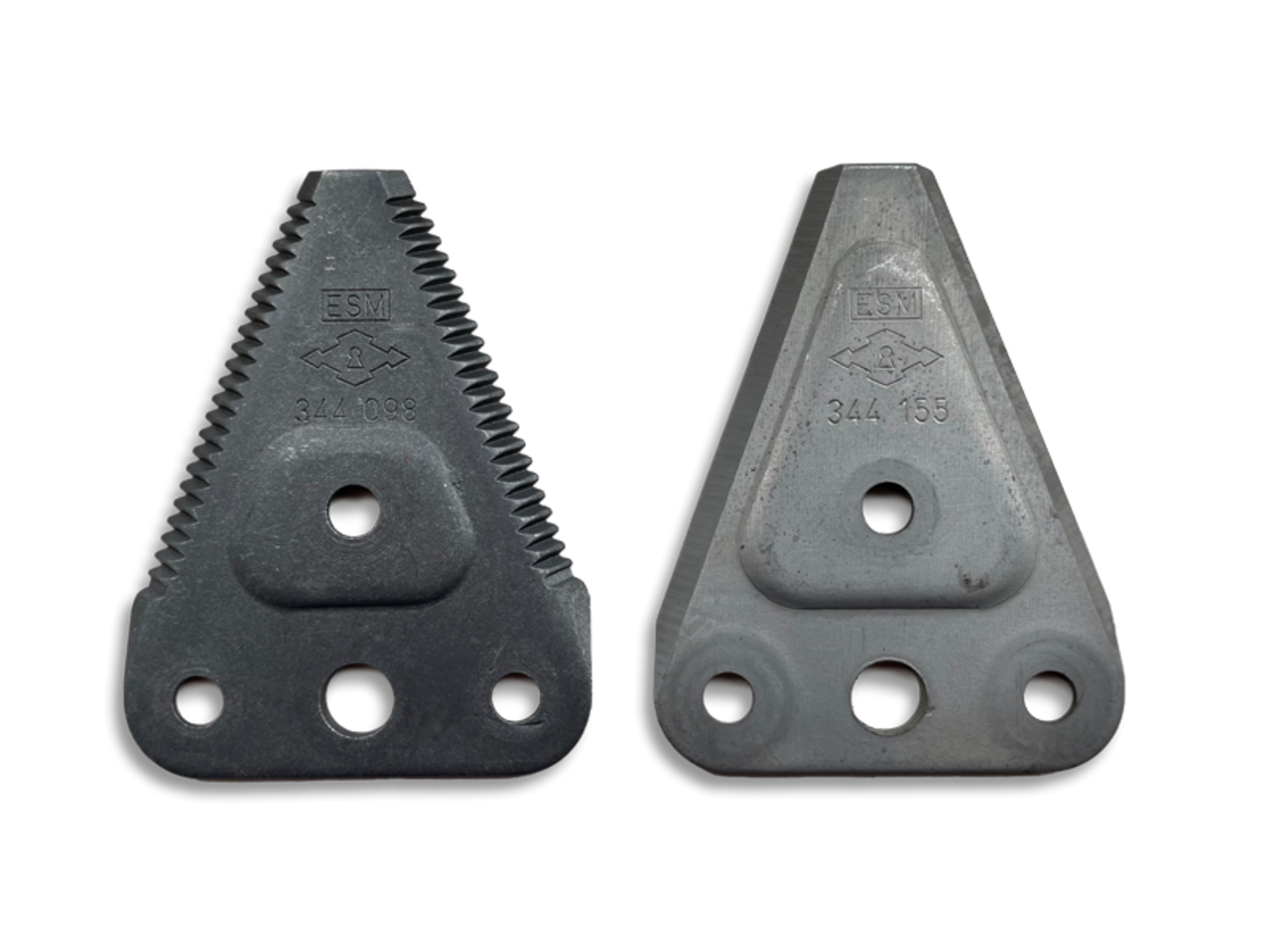

Only ESM has a serrated knife blade specially designed for use in coarse-grained material. This blade is used by bidux in the lower knife paired with a smooth upper knife for an exact cut, designed for maximum performance. Long service life and no regrinding necessary = reduction of grinding effort by 50 %. Only original from ESM!
